Beyond the datasheet: how digital tools are reshaping connector engineering

September 2, 2025 By Peter Schneid, VP of Marketing at Harwin Leave a Comment

While connectors are essential components of nearly every electronic application, they can be easily overlooked by design teams as they focus their initial prototyping efforts on the critical functionality provided by processors, controllers, and other semiconductors. What’s more, for many engineers, connector design and implementation is often outside, or at best adjacent, to their core competence.

As a result, design teams are increasingly seeking external resources to help them quickly and easily identify, select, evaluate, and deploy the best connectors for the task, based on criteria ranging from performance and reliability to size and weight. And connector suppliers need to rise to this challenge by being easy to work with, digitally optimized, and responsive to engineers’ needs at every stage of the design journey.

Why connectors get overlooked

When engineers kick off a new design, their attention naturally gravitates toward the more ‘exciting’ parts, such as sensors and software. This is understandable. Connectors don’t run code or crunch data, so they often fall to the bottom of the priority list. Yet, given that connectors form the backbone of all modern electronics, a poor connector choice can compromise reliability or safety. Once the design is finalized, those problems are rarely easy to rectify.

Connectors come in many shapes and sizes, but most address two primary requirements: carrying power and transmitting data. Power connectors ensure systems receive stable voltage and current, while data connectors handle everything from serial communications to high-speed Ethernet and USB links.

Depending on the application, connector requirements can vary dramatically. Aerospace systems, for example, demand ultra-reliable, vibration-resistant connectors, while medical devices prioritize compact, biocompatible designs. Industrial settings often require ruggedized options that can withstand dust, moisture, or corrosive chemicals. Each use case brings its own mechanical and environmental challenges.

And when connector choices go wrong, the consequences can be serious. Poor contact integrity can lead to data errors or intermittent power loss. Mismatched mechanical tolerances can lead to wear or outright failure when subjected to shock or vibration. Environmental stressors, such as heat, humidity, and corrosive atmospheres, can degrade materials over time, especially when the wrong specification is chosen.

Too many choices, too little time — the challenge for engineers

For engineers, the connector market presents a classic case of too much choice and not enough clarity. There are thousands of product families to choose from, each with multiple variants, mounting options, contact arrangements, and ratings. To make matters worse, supplier documentation can be fragmented, inconsistent, or so dense that it’s hard to parse.

That complexity slows everything down. Engineers spend valuable hours searching for data sheets, verifying specifications, and cross-referencing part numbers, only to discover that a model is out of stock or doesn’t work with their software environment. CAD files, when available, may be incompatible with their preferred tools, forcing additional rework or manual modeling. It’s a frustrating experience, and one that gets worse as project timelines shrink.

For instance, a design engineer working on a harsh-environment sensor might find several promising connector families, only to discover that the one meeting electrical specs lacks a compatible 3D model. At the same time, another can’t meet ingress protection requirements. These delays compound across teams, especially in agile environments where design reviews happen weekly and component changes ripple through PCB layouts, cable routing, and BOM planning.

Digital tools reshaping connector selection

Connector selection has always been complex, but the sheer scale of modern projects now makes it nearly impossible without digital tools. Harwin’s 2025 North American Connector Market Survey confirms this: more than half of respondents said they already use or plan to use online resources to support connector selection and design-in.

Today’s engineering teams expect more than just downloadable PDFs. They rely on fast, searchable platforms that offer verified models, complete metadata, and integration with their preferred design tools. But even now, many suppliers fall short — outdated websites, broken selectors, and missing resources force engineers into long cycles of trial and error.

To help close this gap, many teams now rely on third-party platforms like SnapMagic and TraceParts, which provide access to vast libraries of verified CAD models, footprints, and design assets. These tools help engineers reduce early-stage errors and accelerate product development, especially when supplier data is missing or incomplete.

SnapMagic, for example, integrates directly with many major ECAD tools, enabling engineers to drag and drop verified symbols and footprints into their designs without disrupting workflow. This not only speeds up schematic capture but also helps avoid pinout mismatches or incomplete models. TraceParts offers similar integration benefits, alongside powerful filtering options that let engineers narrow down components by form factor, application, or even compliance requirements. These platforms are becoming essential for teams working across global supply chains or managing multiple design variants in parallel.

Configuration tools support the engineer

The next evolution of tools to streamline connector integration includes both cable and connector configurators, many of which are now browser-based. These platforms allow engineers to design fully customized assemblies in just a few clicks. For cable configurators, users can set cable length, wire gauge, and color coding while configuring assemblies that include both power and signal lines. In the case of Harwin’s Cable Configurator, the tool can generate live 3D previews, drawings, part numbers, and full BOMs instantly. Engineers can then request a quote or upload an existing design to replicate.

However, at this point, it is also essential to complement these digital platforms with experienced product specialists who can support decision-making, resolve technical questions, and guide engineers through more complex builds.

What’s next? AI, digital twins, and future of connector design

Despite being one of the oldest categories in electronics, connectors aren’t standing still. Modern designs handle faster data, push more power through smaller footprints, and still meet tougher environmental demands. Just as important, the tools for developing and integrating them are evolving just as quickly.

Take 3D printing. For a growing number of engineers, it’s become a go‑to step in early prototyping. Harwin’s latest survey revealed that approximately one-third of respondents are already printing test parts to verify fit and tolerances before committing to tooling. This approach is quick, low‑cost, and gives teams the confidence to move forward without expensive rework.

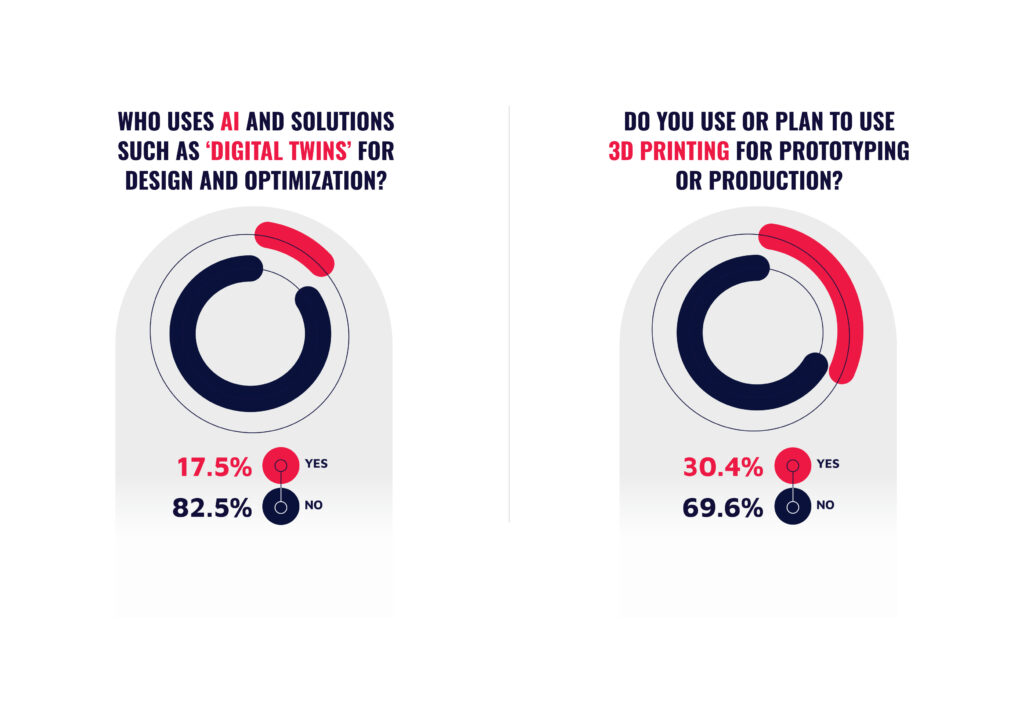

Data from Harwin’s North American Connector Market Survey indicates that 17% of engineers are currently using AI, with 30% using or intending to use 3D printing in prototyping or production workflows.

AI is also starting to play a role. Picture a system that knows every connector spec on the market, understands your design constraints, and can filter down to a handful of options in seconds. Early versions are already doing this, with around 17% of engineers using AI in some form, and that number is climbing. As these tools mature, they’re expected to go beyond simple part selection, identifying lifecycle risks, suggesting drop-in replacements, and even flagging lead-time issues before procurement hits a wall.

Digital twins are another step on the horizon. By modelling a connector’s electrical, thermal, and mechanical behavior within a complete system, engineers could validate performance without touching a physical prototype. When done well, this kind of virtual testing can cut weeks from a development cycle, reduce risk, and keep costs under control.

Conclusion

Engineers face pressure to deliver designs faster, more reliably, and at lower cost, and they need suppliers that match that pace. By investing in powerful digital tools, responsive support, and forward-looking technologies, companies can help engineers make smarter decisions earlier. That means fewer design risks, faster development, and better outcomes.

The shift toward digital-first connector selection reflects broader changes in engineering workflows. Success will increasingly depend on how well suppliers adapt their resources to match these evolving needs.
