Derating connector current ratings for real-world PCB power designs

Many datasheet connector current ratings are based on test conditions that rarely reflect real-world printed circuit board (PCB) power designs. These values typically represent performance in free air at controlled ambient temperatures, with optimal copper distribution and without the thermal constraints imposed by dense board layouts, enclosures, or altitude. Engineers who apply these ratings directly often encounter thermal failures, accelerated contact degradation, or production reliability issues.

This article explains how to properly derate connector current ratings and covers the thermal basis of rated current specifications. It also provides derating calculations for temperature and altitude, addresses PCB layout and airflow effects, and includes a step-by-step workflow with numerical examples.

What “rated current” really means

Connector current ratings derive from temperature-rise tests where current increases until the hottest contact point reaches a specified rise above ambient, typically 30°C. Test conditions assume a single connector or defined array in free air or on a standard test board at 20-25°C ambient, with uniform copper conduction and no adjacent heat sources. Datasheet derating curves show maximum current versus ambient temperature to prevent the connector from exceeding its maximum operating temperature, usually 105-150°C, depending on the material system.

As shown in Figure 1, connector current ratings decrease with increasing ambient temperature to prevent the contact from exceeding its maximum allowable operating temperature.

These test conditions rarely reflect real-world PCB installations. Dense power boards with multiple energized connectors, restricted airflow, elevated enclosure temperatures, and narrow traces reduce the current a connector can safely carry. Direct application of catalog ratings in these environments overestimates allowable current and drives contacts into temperature ranges that accelerate resistance growth and shorten service life.

Simple temperature derating math

Temperature rise in the connector contacts follows resistive heating physics. For a given geometry and cooling environment, this rise scales with I², where I represents current. This relationship provides a useful rule of thumb: if a contact produces a known temperature rise at a known current, the current that yields a different rise can be estimated through square-root scaling.

This scaling assumes constant contact resistance and cooling conditions. In practice, contact resistance increases with temperature, so actual performance may degrade somewhat faster than the I² relationship suggests at higher currents.

If a contact is rated for current I_rated at a temperature rise ΔT_rated (typically 30 K), the current I_allowed for a lower allowable rise ΔT_allowed approximates:

I_allowed = I_rated × √(ΔT_allowed / ΔT_rated)

For example, a connector specified at 12 A with 30 K rise and 105°C maximum temperature operates in a system with 70°C worst-case ambient. The available thermal margin to the 105°C limit is 35 K. To maintain adequate safety, the engineer targets a 25 K rise (95°C connector temperature). The allowed current becomes:

I_allowed = 12 A × √(25 K / 30 K) ≈ 10.95 A

Published derating curves show similar reductions. A practical shortcut is to read the current from the vendor derating graph at worst-case ambient, then apply an additional 10-20% guard band for layout variations and manufacturing tolerances.

PCB and airflow considerations

PCB thermal behavior significantly impacts connector performance in board-mount power applications. Larger copper areas, direct plane connections, and thermal vias reduce conductor temperature by 20-50% compared with narrow, isolated traces, raising allowable current at a given temperature rise. Conversely, internal layers with limited heat paths, cramped trace routing, or heavy conformal coatings reduce cooling capacity.

IPC-2152 current-carrying capacity guidelines note that copper thickness, layer stackup, and environment affect current-to-temperature relationships. As a basic rule, treat the published current as optimistic if the connector datasheet assumes substantial copper distribution and the design feeds each pin through a narrow trace that necks down near the contact.

In these scenarios, consider 70-80% of the catalog value unless thermal simulation or measurement validates a higher capacity. As shown in Figure 2, copper pours and thermal vias near connector pins provide an effective heat-spreading path, increasing allowable current compared with designs that rely on narrow, isolated traces.

Beyond PCB layout, airflow conditions significantly impact thermal performance.

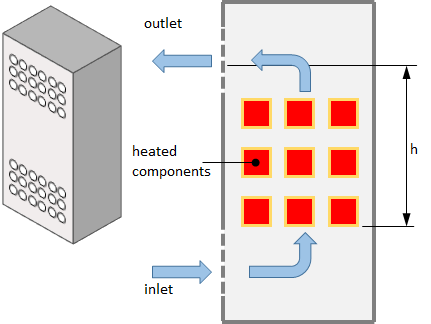

Natural convection in still air provides convective heat transfer coefficients around 5-10 W/m²·K, while modest forced airflow (1-2 m/s) increases this to 20-50 W/m²·K. As shown in Figure 3, a typical forced-airflow arrangement with inlet and outlet paths creates directed convection through the enclosure, reducing connector temperature rise at a given current.

Even moderate fan-driven airflow can substantially reduce temperature rise at constant current. When enclosure airflow matches test conditions, published forced-air derating curves apply. In sealed or poorly ventilated enclosures, a conservative starting point is to limit allowable power to 20-30% below open-frame natural-convection ratings unless specific thermal data or testing validates higher values.

Altitude derating

High altitude reduces air density and degrades convective cooling, increasing temperature rise at constant current. Power supply and contactor manufacturers commonly specify altitude derating above 2,000 m, typically reducing allowable current by modest factors that reflect reduced cooling capacity. Practical altitude derating factors include:

• Up to 2,000 m: No additional derating beyond ambient temperature curves
• 2,000-4,000 m: Reduce current by 5-10% or require a lower ambient for the same current
• 4,000-6,000 m: Reduce current by 15-30% depending on design margin requirements

These factors reflect thermal physics. Heat rejection scales roughly with the square root of the air density ratio. At 3,000 m (approximately 70% sea-level density), this yields about 84% of sea-level cooling capacity, supporting the 10-15% current reduction in that range. Some contactor vendors provide explicit altitude derating factors, such as 0.87 at 3,500 m, which can guide similar-sized connector hardware when vendor-specific curves are unavailable.

Practical derating workflow

A systematic derating process combines vendor data, thermal physics, and application-specific conditions.

• Start with the vendor derating curve for the specific connector series at worst-case ambient temperature. Do not rely solely on the headline current-per-contact specification.
• Adjust for temperature margin. Select a maximum connector temperature 20-25°C below the plastic’s long-term rating. If the available margin supports only a 20-25 K rise but the datasheet assumes 30 K, scale the current using √(ΔT_allowed / 30 K).
• Apply environmental factors. In sealed or poorly ventilated enclosures, derate another 10-20% relative to open-air curves. At altitudes above 2,000 m, apply 5-10% derating per additional 2,000 m.
• Check PCB bottlenecks. Ensure trace and via current capacity meets or exceeds the connector pin capacity. If traces limit current below the connector rating, that lower value is the effective system limit.
• Add system safety margin. For long-life automotive and industrial applications, operate contacts at 50-70% of catalog current to accommodate aging, contamination, and worst-case loading.

The following example demonstrates this process.

A 12 A/contact connector (30 K rise, 105°C max, specified to 85°C ambient) operates in a system with 70°C worst-case enclosure ambient at 3,000 m altitude with modest airflow and dense copper.

• From the derating curve: 12 A allowed at 70°C ambient
• Reduce to 25 K rise for margin to 95°C: 12 A × √(25/30) ≈ 11 A
• Altitude derating at 3,000 m: 11 A × 0.90 ≈ 10 A
• System margin (70% for aging/layout): 10 A × 0.70 ≈ 7 A continuous per contact

This workflow produces a design current substantially below the headline rating yet remains appropriate for actual operating conditions and reliability requirements.

Summary

Catalog connector ratings assume ideal test conditions rarely encountered in deployments. PCB layout, airflow, and altitude all impact allowable current in actual installations. Temperature rise scales with I², enabling quick derating calculations when ambient, PCB, or airflow conditions change. A systematic workflow starting from vendor curves, adjusting for ambient and environment, checking trace capacity, and applying safety margins produces ratings appropriate for real-world conditions. For critical applications, operating at 50-70% of derated values provides additional margin against aging and worst-case condition stacking.

References

Connector Temperature Rise and Derating, Würth Elektronik
IPC-2152 Standard: PCB Trace & Via Current Calculator, RayMing PCB & Assembly
Derating Curves, Power Ratings, Maximum Current Ratings, Harwin
Technical Reference: General Application Notes, Anderson Power
Connector Temperature and Current Ratings Challenges, EU Passive Components
IPC 2152, Current Carrying Capacity in Printed Board Design, ANSI
Trace Width vs Current in PCB Design, Wevolver
What Does Derating Mean for Power Supplies, Puls
XT IEC Power Control—High Altitude, Eaton
Power Distribution II – Signal Contacts in Parallel, ConnectorSupplier
Connector Rated Current and Shunt Current, IRISO
Divert Current to Multiple Pins, IRISO
Using an IPC-2152 Calculator: Designing to Standards, Altium
