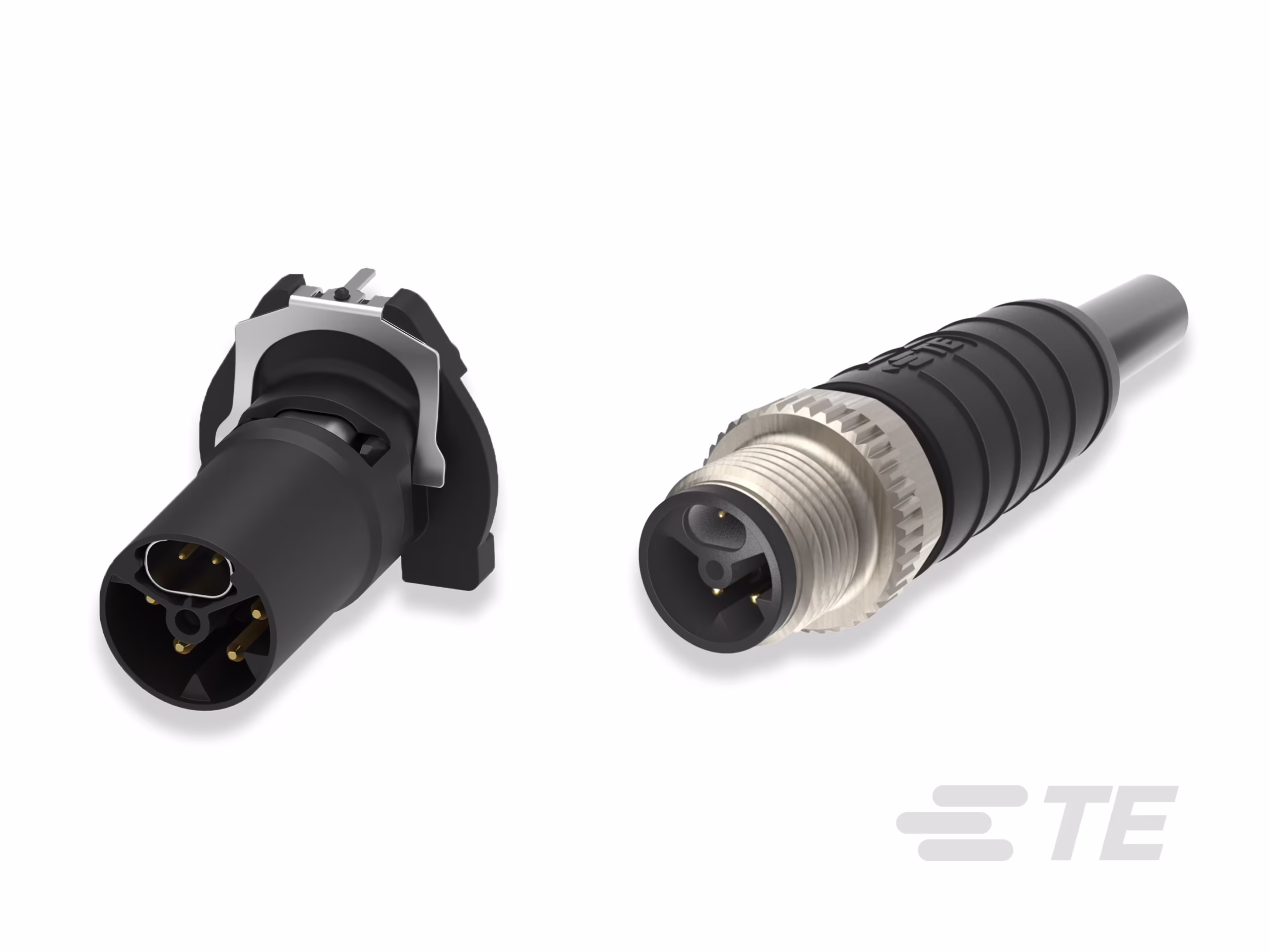

TE Connectivity has introduced its latest Single Pair Ethernet (SPE) M12 hybrid connectors, developed to integrate power-delivery and high-speed data transmission within a single interface for industrial automation systems. Designed to the IEC 63171-7 standard, the connectors support both communication and power distribution to field devices, enabling real-time data exchange across factory networks.
The SPE M12 hybrid interface transmits data at rates up to 1 Gbit/s while supplying 2 × 8 A of current, supporting loads approaching 1 kW. This expands the capability compared to earlier M12 hybrid solutions, limited to 100 Mbit/s and 2 × 6 A. The increased bandwidth and power delivery are suited to industrial equipment such as robotic actuators, compact drives, sensors, machine-vision modules, and other devices that require higher processing capability within constrained mechanical envelopes.
The connector integrates data and power lines into a single cable, reducing cabling complexity and minimizing the need for gateways or protocol converters. Its standardized mating face enables interoperability between equipment from multiple manufacturers, supporting system-wide Ethernet-based communication. This approach aligns with current trends toward decentralized architectures and end-to-end Ethernet communication in Industry 4.0 environments.
The SPE M12 hybrid connector is constructed for harsh-environment operation and carries an IP67 ingress-protection rating. Its mechanical design provides secure mating, shielding, and robust strain relief to maintain signal integrity under vibration, contamination, and mechanical stress. The interface can be used in new equipment designs to support emerging IIoT applications or incorporated into existing platforms where space, bandwidth, and power constraints limit performance.
By extending SPE standards into the M12 form factor, the solution helps industrial system designers increase wiring density, improve planning flexibility, and reduce installation complexity. Documentation and technical resources for the SPE M12 hybrid connector are available online.
