Molex’s Mirror mezzanine connectors available from Heiland Electronics

December 20, 2019 By Mary Gannon Leave a Comment

Heilind Electronics is now stocking the Molex Mirror Mezz connector system. Offering data rates of up to 56 Gbps per differential pair, this solution lowers application costs with stackable mating and is ideal for space-constrained servers, networking and telecommunications equipment — especially for companies adopting OCP hardware.

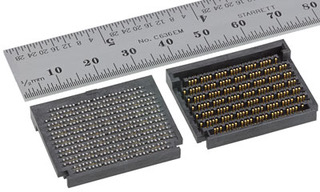

Molex Mirror Mezz connectors now at HeilandThe Molex Mirror Mezz high-speed mezzanine system features a stitched ball grid array (BGA), which reduces lead times and allows for a simplified product matrix. In addition, an intricately designed terminal structure provides numerous mechanical strengths and cutting-edge electrical features to facilitate high data rates.

A key benefit of these self-mating, hermaphroditic Mirror Mezz connectors is that they easily achieve a mated stack height that meets an application’s requirements. This is especially important for engineers facing design-in challenges due to shrinking real estate. Various combinations of the 2.50 and 5.50 mm connectors result in 11.00, 8.00 or 5.00 mm mated stack heights. Offering a 1 A maximum current per contact, the connectors carry a maximum voltage 30 Vac and feature a dielectric withstanding (hipot) voltage of 500 Vdc.

Heilind Electronics Inc.
www.heilind.com
