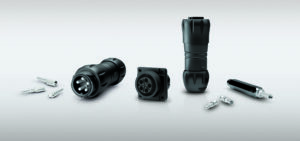

binder’s Harsh Environment Connector (HEC), part of the 696 series, is designed for outdoor applications that require protection against dust, moisture, and mechanical impact. Its housing uses corrosion-resistant and UV-stable materials, and its sealing system is engineered to maintain electrical performance during exposure to precipitation, wash-downs, and temperature variation. These characteristics support use in agricultural machinery, industrial equipment, and renewable energy installations.
The HEC provides IP68 protection and reaches IP69K when mated, enabling resistance to high-pressure or steam-jet cleaning. Material stability under strong solar radiation and humidity supports long service life in environments with continuous UV exposure or elevated moisture. The connector is available in versions intended to maintain both signal integrity and power continuity under these conditions.
Field installation is supported through a screw clamp termination option available in the 5-pole version, allowing assembly with standard tools. A bayonet locking mechanism provides a press-and-turn method for mating and unmating. A hybrid configuration combines power and signal contacts in a single connector, reducing the number of separate interfaces required in certain applications.
The series includes 5-, 8-, and 12-pole variants. Current ratings include 32 A for the 5-pole version, 3 A (signal) and 25 A (power) for the 8-pole version, and 5 A for the 12-pole version. Voltage ratings range from 150 V to 6000 V, depending on the configuration. The products carry VDE and UL approvals. Accessories include protective caps, covers, and compatible conduit systems for additional mechanical or environmental shielding.
In agricultural and construction machinery, the 696 series is used in systems subject to vibration, impact, and fluid exposure. Cable connectors and square-flange components can be paired with protective conduits to maintain IP68 protection, and IP69K when mated. Integrated sealing within the conduit path provides IP67 protection for routed cables and wires.
The connector is also suitable for outdoor lighting, tunneling infrastructure, and similar installations where components must tolerate humidity, oils, chemicals, vibration, and thermal fluctuations. In renewable energy systems such as solar and wind installations, components must withstand high UV loads, moisture, and wide temperature ranges. The HEC’s sealing performance, corrosion resistance, and vibration tolerance support operation in these conditions. Its voltage and current ranges allow use in both low- and high-voltage sections of these systems.
