Carlisle Interconnect Technologies (CarlisleIT) has announced the launch of a lineup of innovative products designed to deliver high signal integrity in increasingly dense RF test and measurement applications. New products include the CoreGD and CoreHC RF adapters; Secure-Thread, one of the smallest threaded lock connectors available; and the Passive Probe, a 500 MHz CAT III/IV general-purpose, high voltage probing solution.

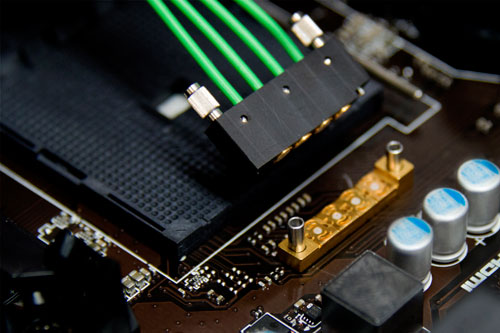

The CoreGD and CoreHC connector systems are designed to provide a cost-effective and field-replaceable interconnect solution to reduce initial and ongoing costs. The solderless CoreHC features a small 4-mm footprint and is equipped to meet complex requirements, delivering 20,000 cycles and enabling the ability to selectively load the connector. CoreHC is available in multiple position offerings, including stackable side-to-side and back-to-back options in addition to board-to-board stack, vertical, edge and right angle mounts.
The robust and flexible design of the CoreGD is based on SSMP ganged 4.0-mm pitch and WMP ganged 2.5-mm pitch designs. GoreGD is highly customizable to provide a cost-effective, hybrid interconnect solution, and the connector is available in multiple configurations, including vertical mount, board-to-board stack, right angle mount and edge mount. Configurations are available in standard offerings of 2, 4, 6, 8, and 10 positions.
The new Secure-Thread series for the SSMP and WMP connector systems provides a smaller and lighter version of the SMP interconnect system. The connector features a blind-mateable push-on combined with a threaded coupling nut system, promoting a high standard for electrical performance and eliminating any mechanical movement at the interface. The frequency range for the Secure-Thread is dcto 65 GHz (SSMP) and dc to 100 GHz (WMP), and the connector meets MIL-PRF-39012 and MIL-STD-202 specifications. Secure-Thread is compatible with several of CarlisleIT’s cables, including the AccuPhase, Semi-Rigid and Semi-Flexible cables.

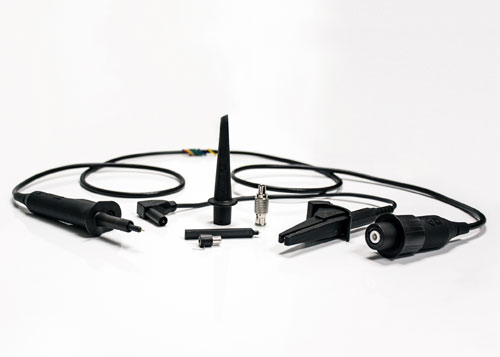

The Passive Probe provides an industry-leading combination of high bandwidth and high voltage in a low cost, rugged, general purpose probing solution. Available in 1X, 10X and 100X configurations, the Passive Probe provides broad application coverage and features a small UL approved body and compact head, providing the user access to small geometry circuit elements. The Passive Probe features a 500 MHz bandwidth and exceeds UL61010-31 and IEC61010-31 standards. The Probe is designed for use in applications including low power device services, manufacturing engineering, test research and development, power supplies and more.
Carlisle Interconnect Technologies
www.CarlisleIT.com
