Expanded 12G HD-BNC jack connectors are suited for broadcast applications

October 3, 2018 By Mary Gannon Leave a Comment

Amphenol RF has introduced additional HD-BNC jacks to its already extensive line of 12G products. These products are aimed to support the rapidly growing need for faster processing and more space-conscious broadcast solutions.

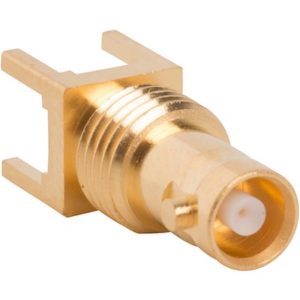

Amphenol RF 12G jack connectorsThe extended line of HD-BNC Jacks includes PCB and cable mount products in the straight configuration. These 75 ohm 12G-SDI connectors are designed to perform at frequencies up to 18 GHz with the familiar BNC bayonet coupling mechanism, a feature popular with engineers and application designers.

The new HD-BNC straight crimp cable jack is designed to interact with Belden 4855R and 1855A cables, and has an IP-67 sealed interface. Connector housings are made from machined brass, with beryllium copper outer contacts for secure mating. Jack bodies are designed in plated gold for solderability with center contacts plated gold for maximum electrical performance.

These 12G products have a variety of applications including remote viewing, digital signage and mobile broadcasting.

Amphenol RF
www.amphenolrf.com
