ODU is introducing to the market ODU SPC 16, the robust single power connector solution.

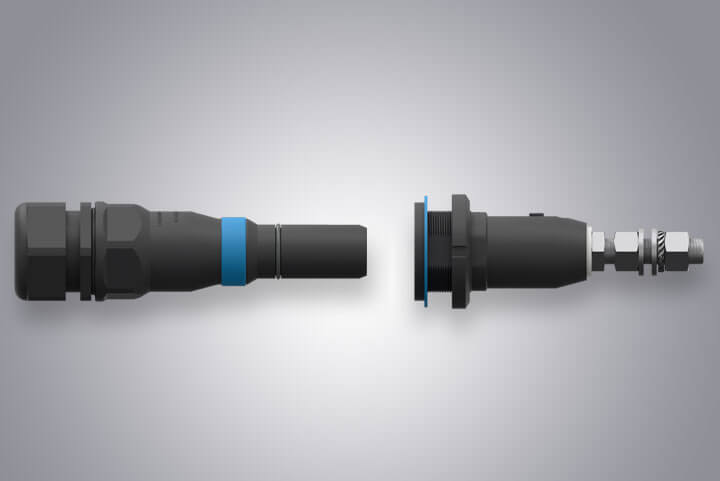

The ODU SPC 16 is a robust single power high voltage and high current connector. This connector benefits of the ODU LAMTAC technology, a high performance contact system with maximum current carrying capacity.
ODU SPC 16 has a robust housing made of engineered plastics and a bayonet locking system that ensures a quick and easy mating. The single power connector is IP65 in mated condition, can stand currents up to 615 A/1,000 V, and has up to 5,000 mating cycles, making it a highly reliable and stable connector solution. Additional product features include: touch proof IP2X, operating temperature range of -40 °C up to 60 °C, crimp termination type for the plug and a screw termination for the receptacle, cable cross section of 150 / 185 / 240 mm² and 6 color coding options.
ODU’s new high power connector solution, ODU SPC 16, is ideal for various applications, such as but not limited to stationary power distribution, emergency generators, and mobile power supply trucks.
The ODU Group
www.odu-usa.com
